Main Unit
| Machine Type | A3 Monochrome Laser Multifunctional |
| Core Functions | iR2224N: Print, Copy, Scan, and Send iR2224: Print, Copy, and Scan |

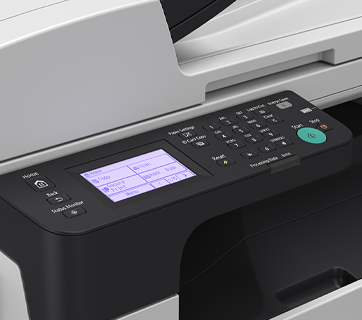

| Control Panel | 88.9-mm monochrome touch panel |
| Memory | 1.0 GB RAM |
| Storage | eMMC: 2 GB |
| Interface Connection | NETWORK*1 Standard: 100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)OTHERS Standard: USB 2.0 (Device) x1 |
| Paper Supply Capacity (A4, 80 g/m2 (gsm)) | Standard: 350 sheets (Paper Drawer: 250 sheets, MPT Tray: 100 sheets) Maximum: 600 sheets (with Cassette Feeding Module-AK1) |
| Paper Output Capacity (A4, 80 g/m2 (gsm)) | Standard: 250 sheets Maximum: 250 sheets |
| Supported Media Types | Multi-purpose Tray: Thin, Plain, Recycled, Thick, Colour, Bond, Label, Pre-punched, EnvelopePaper Cassette: Plain, Recycled, Colour, Pre-punched |
| Supported Media Sizes | Multi-purpose tray: A3, A4, A4R, A5, A5R, B4, B5, B5R, Envelope (COM10, Monarch, DL, ISO-C5), Custom size min. 95.0 x 148.0 mm up to 297.0 x 431.0 mmPaper Cassette: Standard size: A3, A4, A4R, A5R, B4, B5, B5R |
| Supported Media Weights | Multi-purpose tray: 60 to 157 g/m2 (gsm) Paper cassettes: 64 to 90 g/m2 (gsm) Duplex: 60 to 90 g/m2 (gsm) |
| Warm-up Time | From Power On: 13 seconds or less*2 *3 From Sleep Mode: 4.3 seconds or less |
| Dimensions (W x D x H) | iR2224N (with DADF): 627 x 607 x 606 mm iR2224/2224N (with Platen cover): 627 x 589 x 502 mm iR2224N (with DADF and cassette): 627 x 607 x 698 mm iR2224N (with Platen cover and cassette): 627 x 589 x 594 mm |
| Installation Space (W x D) | 1065 x1285 mm |
| Weight | iR2224N: Approx. 30.3 kg without toner and Platen cover iR2224: Approx. 31.6 kg without toner and including Platen cover |
| Print Speed (BW) | 1-sided: Up to 24 pages/min (A4), Up to 12 pages/min (A3), Up to 11 pages/min (A4R) 2-sided: Up to 16.7 pages/min (A4), Up to 7.5 pages/min (A3), Up to 7.8 pages/min (A4R) |
| Print Resolution (dpi) | 600 × 600 |
| Page Description Languages | Standard: UFRII Optional (iR2224N only): PCL6 (Optional)/PCL5 (Optional) |
| Printing From Mobile and Cloud Application | Apple AirPrint, Canon PRINT Business, Mopria, Canon Print Service |
| Fonts | PCL (Optional) fonts: 45 Roman, 10 Bitmap fonts |
| Operating System | UFRII: Windows® 8.1 / Windows® 10 / Windows® 11 / Windows® Server 2012 / Windows® Server 2012 R2 / Windows® Server 2016 / Windows® Server 2019 / Windows® Server 2022/ macOS (10.12 or later) PCL (Optional): Windows® 8.1 / Windows® 10 / Windows® 11 / Windows® Server 2012 / Windows® Server 2012 R2 / Windows® Server 2016 / Windows® Server 2019 / Windows® Server 2022 |
Copy
| Copy Speed | 1-sided: Up to 24 pages/min (A4), Up to 12 pages/min (A3), Up to 11 pages/min (A4R) 2-sided: Up to 16.7 pages/min (A4), Up to 7.5pages/min (A3), Up to 7.8 pages/min (A4R) |
| First-Copy-Out Time (BW) | Platen: Approx. 7.4 seconds or less (A4) |
| Copy Resolution (dpi) | 600 x 600 |
| Multiple Copies | Up to 999 copies |
| Copy Density | Automatic or Manual (9 Levels) |
| Magnification | 25% – 400% (1% Increments) Preset reduction/enlargement: 25%, 50%, 70%, 100%, 141%, 200%, 400% |
Scan
| Document Feeder Paper Capacity | 50 Sheets (80 g/m2 (gsm)) |
| Acceptable Originals and Weights | Platen: Sheet, Book Document Feeder sheet media weight: 1-sided/2-sided continuous scanning: 52 to 105 g/m2 (gsm) (BW/CL) Only 1-sheet feeding is supported in 37-52 and 105-128 g/m2 (gsm) |
| Supported Media Sizes | Platen: Max. scanning size: 297.0 x 431.8 mm Document Feeder media size: A3, A4, A4R, A5, A5R, B4, B5, B5R Custom size: 128.0 x 148.0 mm to 297.0 x 431.8 mm |
| Scan Speed (ipm: BW/CL, A4) | DADF: 1-sided Scanning: 35/25 (300 dpi, send), 25 (600 dpi, copy) 2-sided Scanning: 12/8 (300 dpi, send), 8 (600 dpi, copy) |
| Scan Resolution (dpi) | Scan for Copy: up to 600 x 600 Scan for Send: (Push) up to 300 x 600, (Pull) up to 600 x 600 |
| Pull Scan Specifications | ScanGear MF For both TWAIN and WIA Windows® 8.1/ Windows® 10/ Windows® 11 macOS (10.12 or later) |
Send
| Destination | iR2224N: Email (SMTP), SMB3.0 |
| Address Book / Speed Dials | iR2224N: LDAP (50) / Local (300) / One-Touch (296) |
| Send Resolution (dpi) | Push (iR2224N): 300 x 600 (SMB/FTP/Email) Pull: 50 x 50, 75 x 75, 150 x 150, 200 x 200, 300 x 300, 400 ｘ 400, 600 x 600 |
| Communication Protocol | File*1: SMB3.0 (TCP/IP) Email*1: SMTP (Send) |
| File Format | Standard: TIFF, JPEG*4, PDF (Compact) |
Security
| Authentication and Access Control | Department ID Authentication (Department ID and PIN Login, Function Level Login） |
| Document Security | Print Security (SecurePrint, Encrypted SecurePrint), Send Data Security (Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History) |
| Network Security | TLS 1.3*5, IPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP Address Filtering), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN |
| Device Security | Standard HDD/SSD Initialize, Job Log Conceal Function, Protecting MFP Software Integrity, Verify System at Startup (NIST SP800-193) |
| Device Management and Auditing | Administrator Password, Digital Certificate and Key Management*6, Security Policy Setting*6 |
Environmental
| Operating Environment | Temperature: 10 to 30 ºC Humidity: 20 to 80% RH (Relative Humidity) |
| Power Source | Asia: 220-240V 50/60Hz 10A |
| Power Consumption | Maximum: Approx. 1,500 W Standby: Approx. 15.5 W Sleep mode: Approx. 0.9 W |
Consumables
Paper Supply Options
| Feeder Options | Cassette Feeding Module-AK1 Paper Capacity: 250 sheets x 1 (80 g/m2 (gsm)) Paper Type: Plain, Recycled, Colour, Pre-punched Paper Size: A3, A4, A4R, A5, B4, B5, B5R Paper Weight: 64 to 90 g/m2 (gsm) Power Source: Main Unit Dimensions (W x D x H): 581 x 575 x 92 mm Weight: Approx. 5.8 kg |
