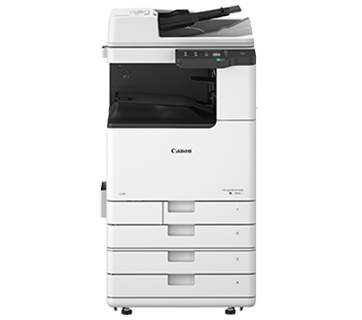

Main Unit
| Machine Type | A3 Monochrome Laser Multifunctional |
| Core Functions | Print, Copy, Scan, Send and Optional Fax |
| Control Panel | 17.78 cm TFT LCD WVGA Colour Touch panel |
| Memory | Standard: 2.0 GB RAM |
| Storage | Standard: 64 GB eMMC (available space 30 GB) Optional: 256 GB SSD |
| Interface Connection | NETWORK Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)OTHERS Standard: USB 2.0 (Host) x2, USB 2.0 (Device) x1 |
| Paper Supply Capacity (A4, 80 g/m2 (gsm)) | Standard: 1,200 sheets (100 sheets Multi Purpose Tray 2 x 550 sheets paper cassette) Maximum: 2,300 sheets (with Cassette Feeding Unit-AW1) |
| Paper Output Capacity (A4, 80 g/m2 (gsm)) | Standard: 250 sheets Maximum: 645 sheets (with Inner Finisher-L1 and Copy Tray-T2) |
| Supported Media Types | Multi-purpose Tray: Thin, Plain, Heavy, Recycled, Coated*1, Colour, Tracing, Bond, Transparency, Labels, Pre-punched, Letterhead, Envelope, PostcardUpper Cassette: Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope*2, Postcard Lower Cassette: Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope*3, Postcard |
| Supported Media Sizes | Multi-purpose Tray: Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 98.4 x 139.7 mm to 320.0 x 457.2 mm Free size: 100.0 x 148.0 mm to 304.8 x 457.2 mm Envelopes: COM10 No.10, Monarch, ISO-C5, DL Envelope custom size: 98.0 x 98.0 mm to 320.0 x 457.2 mmUpper Cassette: Standard size: A4, A5, A5R, A6R, B5 Custom size: 105.0 x 148.0 mm to 297.0 x 215.9 mm Envelopes: ISO-C5 Lower Cassette: Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 105.0 x 148.0 mm to 304.8 x 457.2 mm Envelopes*4: COM10 No.10, Monarch, DL |
| Supported Media Weights | Multi-purpose Tray: 52 to 300 g/m2 (gsm)*1 *5Upper/Lower Cassette: 52 to 256 g/m2 (gsm) Duplex: 52 to 220 g/m2 (gsm) |
| Warm-up Time (Quick start mode: ON) | 4 Seconds or Less*6 From Sleep Mode: 10 seconds or less From Power On: 10 seconds or less*7 |
| Dimensions (W x D x H) | With DADF-AZ2 iR2925: 565 x 693 x 852 mm |
| Installation Space (W x D) | iR2925: 1,286 x 1,122 mm (with DADF-AZ2 + Inner Finisher tray max extended + Copy Tray-T2 max extended + paper cassette opened) |
| Weight Including Toner | With DADF-AZ2 iR2925i: Approx. 66 kg |
| Print Speed (BW) | iR2925: 1-sided: Up to 25 pages/min (A4), Up to 15 pages/min (A3), Up to 20 pages/min (A4R) 2-sided: Up to 25 pages/min (A4), Up to 15 pages/min (A3), Up to 20 pages/min (A4R) |
| Print Resolution (dpi) | 600 × 600, 1,200 × 1,200 (half-speed) |
| Page Description Languages | Standard: UFRII Option: PCL6 (Optional), Adobe® PostScript®3™ |
| Direct Print (RUI) | PDF, EPS, TIFF/JPEG, XPS |
| Printing from Mobile and Cloud Application | AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print |
| OS Standard Printing | Android, Windows® 10/11, Chrome OS, macOS (11.2.2 or later), iOS (15.2 or later), iPadOS |
| Fonts | PS fonts: 136 Roman PCL (Optional) fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*8 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*9 |
| Operating System | UFR II: Windows® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, macOS(10.13 or later) PCL (Optional): Windows® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022 PS: Windows® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, macOS(10.13 or later) PPD: Windows® 10/11, macOS(10.13 or later) |
Copy
| Copy Speed | iR2925 1-sided: Up to 25 pages/min (A4), Up to 15 pages/min (A3), Up to 20 pages/min (A4R) 2-sided: Up to 25 pages/min (A4), Up to 15 pages/min (A3), Up to 20 pages/min (A4R) |
| First-Copy-Out Time (A4) | iR2925: 7.0 seconds |
| Copy Resolution (dpi) | 600 x 600 |
| Multiple Copies | Up to 9,999 copies |
| Copy Density | Automatic or Manual (9 Levels) |
| Magnification | Variable zoom: 25% to 400% (1% Increments) Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400% |
Scan
| Document Feeder Paper Capacity (80 g/m2 (gsm)) | DADF-BA1: up to 100 sheets DADF-AZ2: up to 50 sheets |
| Acceptable Originals and Weights | Platen: Sheet, Book and 3-Dimensional objects DADF-AZ2 iR2925i: 1-sided scanning: 38 to 128 g/m2 (gsm) 2-sided scanning: 52 to 128 g/m2 (gsm) |
| Supported Media Sizes | Platen: Max. scanning size: 297.0 x 431.8 mmDADF-AZ2 iR2925i: A3, A4, A4R, A5, A5R, B4, B5, B5R Custom size: 148.0 x 128.0 mm to 297.0 x 431.8 mm |
| Scan Speed (ipm: BW/CL, A4) | DADF-AZ2 iR2925i: 1-sided Scanning: 35/25 (300 x 300 dpi, send), 25/- (600 x 600 dpi, copy) 2-sided Scanning: 12/8 (300 x 300 dpi, send), 8/- (600 x 600 dpi, copy) |
| Scan Resolution (dpi) | Scan for Copy: 600 x 600 Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX) (Pull) 600 x 600 Scan for Fax: 600 x 600 |
| Pull Scan Specifications | Colour Network ScanGear2. For both TWAIN and WIA Supported OS: Windows® 10/11/Server2012/Server2012 R2/Server 2016/Server 2019/Server 2022 |
Send
| Destination | Standard: E-mail/Internet FAX (SMTP), SMB, FTP, WebDAV Optional: Super G3 FAX |
| Address Book | LDAP (2,000) / Local (1,600) / One-touch (200) |
| Send Resolution (dpi) | Push: (CL) up to 300 x 300 / (BW) up to 600 x 600 Pull: (CL) up to 300 x 300 / (BW) up to 600 x 600 |
| Communication Protocol | FTP: (TCP/IP), SMB3.1.1 (TCP/IP), WebDAV Email/iFax: SMTP (send), POP3 (receive) |
| File Format | Standard: TIFF (MMR), JPEG*10, PDF (Compact, OCR (Text Searchable), Optimize PDF for Web, Format to PDF/A-1b, Encrypt), XPS (Compact, OCR (Text Searchable)), PDF/XPS (Device Signature), Office Open XML (PowerPoint, Word) Option: PDF (Trace & Smooth), PDF / XPS (User Signature) |
Fax
| Maximum Number of Connection Lines | 1 |
| Modem Speed | Super G3: 33.6 kbps G3: 14.4 kbps |
| Compression Method | MH, MR, MMR, JBIG |
| Resolution (dpi) | 200 x 100 dpi (Standard), 200 x 200 dpi (Fine), 200 x 400 dpi (Super Fine), 400 x 400 dpi (Ultra Fine) |
| Sending/Recording Size | Sending: A3, A4, A4R, A5*11, A5R*11, B4, B5*12, B5R*11 Receiving: A3, A4, A4R, A5, A5R, B4, B5, B5R |
| Fax Memory | Up to 30,000 pages (2,000 jobs) |
| Speed Dials | Max. 200 |
| Group Dials/Destinations | Max. 199 dials |
| Sequential Broadcast | Max. 256 addresses |
| Memory Backup | Yes |
Security
| Authentication and Access Control | User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW*13 (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control) |
| Document Security | Print Security (Secure Print, Encrypted SecurePrint, Forced Hold Printing, uniFLOW Secure Print*14), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS*15), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support) |
| Network Security | TLS 1.3, IPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP/MAC Address Filtering), WPA3 support (Wi-Fi), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception |
| Device Security | Standard Storage Initialize, Job Log Conceal Function, Checking MFD Software Integrity (Verify System at Startup, Automatic Recovery, Runtime Intrusion Detection) |
| Device Management and Auditing | Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Security Policy Setting |
Environmental
| Operating Environment | Temperature: 10 to 30°C Humidity: 20 to 80% RH (Relative Humidity) |
| Power Source | 220-240V 50/60Hz 4A |
| Power Consumption | Maximum: Approx. 1,500 W Sleep Mode: Approx. Wired LAN: 0.8 W*16 |
Software and Printer Management
| Tracking and Reporting | uniFLOW Online Express / uniFLOW Online |
| Remote Management Tools | iW Management Console Monitoring Service Content Delivery System |
| Scanning Software | Colour Network ScanGear 2 |
| Optimisation Tools | Canon Driver Configuration Tool |
| Document Publishing | iW Desktop |
Paper Supply Options
| Cassette Feeding Unit-AW1 | Paper Capacity: 550 sheets x 2 (1,100 sheets) (80 g/m2 (gsm)) Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Postcard Paper Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm Paper Weight: 52 to 256 g/m2 (gsm) Power Source: From the Main Unit Dimensions (W x D x H): 565 x 635 x 248 mm Weight: Approx. 16.0 kg |
Output Options*17
| Inner 2way Tray-M1 | Tray Capacity (with 80 g/m2 (gsm) paper) Upper tray: A4, A5, A5R, A6R, B5, B5R: up to 100 sheets SRA3, A3, A4R, B4: up to 50 sheets Lower tray (standard tray): A4, A5, A5R, A6R, B5, B5R: up to 250 sheets SRA3, A3, A4R, B4: up to 100 sheetsPaper Weight: 52 to 300 g/m2 (gsm) Dimensions (W x D x H): 428 x 405 x 88 mm Weight: 0.7 kg |
| Copy Tray-T2 | Capacity (with 80 g/m2 (gsm) paper): A4, A5R, B5, B5R: 100 sheets A3, A4R, B4: 75 sheetsDimensions (W x D x H): 444 × 373 × 176 mm (attached to the main unit, when the extension tray is extended) Weight: 0.5 kg |
| Inner Finisher-L1 | Tray Capacity (with 80 g/m2 (gsm) paper): Upper Tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: Approx. 45 sheets Lower Tray: A4, A5, A5R, B5: Approx. 500 sheets SRA3, A3, A4R, B4, B5R: 250 sheets A6R: 30 sheets Envelope: 10 sheetsPaper Weight: 52 to 300 g/m2 (gsm) Staple Position: Corner, Double Staple Capacity: A4, B5: 50 sheets (52 to 90 g/m2 (gsm)) A4R: 40 sheets (52 to 90 g/m2 (gsm)) A3, B4: 30 sheets (52 to 90 g/m2 (gsm)) Eco Staple: A3, A4, B4, B5: 10 sheets (52 to 64 g/m2 (gsm)) 8 sheets (65 to 81.4 g/m2 (gsm)) 6 sheets (82 to 105 g/m2 (gsm)) Staple On Demand: Approx. 40 sheets (80 g/m2 (gsm)) Dimensions (W x D x H): 587 × 525 × 225 mm (attached to the main unit, when the extension tray is extended) Weight: Approx. 9.1 kg |
| Inner 2/3 Hole Puncher-D1 | (Requires Inner Finisher-L1) Two or Three Holes Acceptable Punch Paper Weight: 52 to 300 g/m2 (gsm) Acceptable Punch Paper Size: Two holes A3, A4, A4R, A5, B4, B5, B5R Three holes A3, A4, B4, B5 |
| Inner 2/4 Hole Puncher-D1 | (Requires Inner Finisher-L1) Two or Four Holes Acceptable Punch Paper Weight: 52 to 300 g/m2 (gsm) Acceptable Punch Paper Size: Two holes A3, A4, A4R, A5, B4, B5, B5R Four holes A3, A4 |
Hardware Accessories
| Card Readers | IC Card Reader Attachment-B4 Option Attachment kit for Reader-A2 |
| Others | DADF-AZ2 DADF-BA1 Platen Cover-Y3 Platen Cover Type Z Platen Cover-Y3 Utility Tray-B1 Media Adjustment Kit-A1 |
System and Controller Options
| Print Accessories | PS Printer Kit-BT1 PCL (Optional) Printer Kit-BT1 PCL (Optional) International Font Set-A1 Barcode Printing Kit-D1 |
| Send Accessories | Universal Send Trace & Smooth PDF Kit-A1 Universal Send Digital User Signature Kit-C1 |
| Fax Accessories | Super G3 FAX Board-BN1 Remote Fax Kit-A1 |
| Storage Accessories | Optional Data Storage Kit-A1 |
| Interface Accessories | Copy Control Interface Kit-D1 |
Other Options
| Accessibility Accessories | ADF Access Handle-A1 |
| Staple Cartridges | Staple-P1 |
