Main Unit
| Machine Type | A3 Monochrome Laser Multifunctional |
| Core Function | Print, Copy, Scan, Send, Store and Optional Fax |
| Processor | Canon Dual Custom Processor (Shared) |
| Control Panel | 10.1mm TFT LCD WSVGA Color Touch panel |
| Memory |
RAM:
– Main CPU: 2 GB
– Image Processing CPU: 2 GB + 1 GB*1 |
| Storage | Standard: (SSD) 256 GB Optional: (SSD) 1 TB |
| Interface Connection | NETWORK Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n); Optional: Bluetooth Low EnergyOTHERS Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1; Optional: Serial Interface, Copy Control Interface |
| Paper Supply Capacity (A4, 80 g/m2 (gsm)) | Standard: 1.200 sheets 1 x 100-sheet multi-purpose tray 2 x 550-sheet cassettes Maximum: 6,350 sheets (with High Capacity Cassette Feeding Unit-C1 + Paper Deck Unit-F1) |
| Paper Output Capacity (A4, 80 g/m2 (gsm)) | Standard: 250 sheets Maximum: 3,450 sheets (with Staple Finisher-AB2 or Fold & Book Finisher-A1 and 3rd Copy Tray Kit-A1) |
| Finishing Capabilities*2 | Standard: Collate, Group With Options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple-On-Demand, V-fold, C-fold, Z-fold |
| Supported Media Types | Multi-purpose tray: Thin, Plain, Recycled, Colour, Heavy, Coated, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, EnvelopePaper Cassette (Upper/Lower): Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope*3 |
| Supported Media Sizes | Multi-purpose tray: Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 98.0 x 139.7 mm to 320.0 x 457.2 mm Free Size: 98.0 x 139.7 mm to 320.0 x 457.2 mm Envelopes: COM 10 No.10, Monarch, DL, ISO-C5 Envelope custom size: 98.0 x 90.0 mm to 320.0 x 457.2 mmUpper Cassette: Standard size: A4, A5, A5R, A6R, B5 Custom Size: 98.0 x 148.0 mm to 297.0 x 215.9 mm Envelopes: COM10 No.10, Monarch, DL, ISO-C5Lower Cassette: Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 98.0 x 148.0 mm to 304.8 x 457.2 mm Envelopes: COM10 No.10, Monarch, DL, ISO-C5 |
| Supported Media Weights | Multi-purpose tray: 52 to 300 g/m2 (gsm) Paper Cassette (Upper/Lower): 52 to 256 g/m2 (gsm) Duplex: 52 to 256 g/m2 (gsm) |
| Warm-up Time (Quick start mode: ON) | Quick Startup Mode: 4 Seconds or less*4 From Sleep Mode: 7 Seconds or Less (iR-ADV DX 6870i) 6 Seconds or Less (iR-ADV DX 6860i) 6 Seconds or Less (iR-ADV DX 6855i) From Power On: 6 Seconds or less*5 |
| Dimensions (W x D x H) | 620 x 722 x 937 mm |
| Installation Space (W x D) | Basic: 1,138 x 1,162 mm (Right Cover Open with Multi-purpose tray extended + Cassette Drawers Open) Fully Configured: 1,866 x 1,162 mm (Staple Finisher-AB2/Fold & Book Finisher-A1 with the extension tray extended + Paper Deck Unit-F1 + Cassette Drawers open) |
| Weight*6 | iR-ADV DX 6855i: Approx. 94 kg |
| Print Speed (BW) | iR-ADV DX 6855i Up to 55 pages/min (A4, A5*7, A5R, A6R*7), up to 29 pages/min (A3), up to 36 pages/min (A4R) |
| Print Resolution (dpi) | 1,200 x 1,200 |
| Page Description Languages | Standard: UFR II, PCL6 Optional: Adobe® PostScript® 3™ |
| Direct Print | Supported file types: PDF, EPS, TIFF/JPEG and XPS |
| Printing from Mobile and Cloud | AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print |
| Fonts | PS fonts: 136 Roman PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*8 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*9 |
| Operating System | UFRII: Windows® 8.1/10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, Mac OS X(10.11 or later) PCL: Windows® 8.1/10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022 PS: Windows® 8.1/10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, Mac OS X(10.11 or later) PPD: Windows® 8.1/10/11, Mac OS X(10.11 or later)As of Jan. 2022 |
Copy
| Copy Speed (BW) | iR-ADV DX 6855i Up to 55 pages/min (A4, A5*7, A5R, A6R*7), up to 29 pages/min (A3), up to 36 pages/min (A4R) |
| First-Copy-Out Time (A4, BW) | iR-ADV DX 6855i: Approx. 2.9 seconds or less |
| Copy Resolution (dpi) | 600 x 600 |
| Multiple Copies | Up to 9,999 copies |
| Copy Density | Automatic or Manual (9 Levels) |
| Magnification | Variable zoom: 25% to 400% (1% Increments) Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400% |
Scan
| Type | Single-pass Duplexing Automatic Document Feeder*10 [2-sided to 2-sided (Automatic)] |
| Document Feeder Paper Capacity (80 gsm) | Up to 200 Sheets |
| Acceptable Originals and Weights | Platen: Sheet, Book, and 3-Dimensional Objects Document Feeder media weight: 1-sided scanning: 38 to 220 g/m2 (gsm) 2-sided scanning: 38 to 220 g/m2 (gsm) An acceptable weight of A6R or smaller is 50 to 220 g/m2 (gsm). |
| Supported Media Sizes | Platen scanning size: up to 297.0 x 431.8 mm Document Feeder media size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R Custom size: 70.0 x 139.7 mm to 304.8 x 431.8 mm |
| Scan Speed (images/minute: BW/CL, A4) | 1-sided Scanning: 135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy), 2-sided Scanning: 270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy) |
| Scan Resolution (dpi) | Scan for Copy: 600 x 600 Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600 Scan for Fax: 600 x 600 |
| Pull Scan Specifications | Colour Network ScanGear2. For both TWAIN and WIA Supported OS: Windows® 8.1/10/11/Server2012/Server2012 R2/Server 2016/Server 2019/Server 2022 |
Send
| Destination | Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV, Mail Box Optional: Super G3 FAX, IP Fax |
| Address Book | LDAP (2,000) / Local (1,600) / One-touch (200) |
| Send Resolution (dpi) | Push: up to 600 x 600 Pull: up to 600 x 600 |
| Communication Protocol | File: FTP(TCP/IP), SMB3.0 (TCP/IP), WebDAV E-mail/I-Fax: SMTP, POP3 |
| File Format | Standard: TIFF, JPEG, PDF(Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS(Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word) |
Fax
Store
| Mail Box (Number supported) | 100 User Inboxes 1 Memory RX Inbox 50 Confidential Fax Inboxes Maximum 30,000 Pages (2,000 jobs) Stored |
| Advanced Box | Communication Protocol: SMB or WebDAV Supported Client PC: Windows® 8.1/10 Concurrent Connections (Max.): SMB:64, WebDAV:3 |
| Advanced Box Available Disc Space | Standard: 16 GB (With option: max. 480GB) |
Security
| Authentication and Access Control | User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login) Department ID Authentication (Department ID and PIN Login, Function Level Login) uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login) Access Management System (Access Control) |
| Document Security | Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*13) Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically) Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration) BOX Security (Mail Box Password Protected, Advanced Box Access Control) Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support) Document Tracking (Secure Watermark) |
| Network Security | TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), WPA3 support (Wi-Fi), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send -Virus Concerns for E-mail Reception |
| Device Security | Protecting SSD Data [SSD Data Encryption (FIPS140-2 Validated), SSD Lock], Standard SSD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection), Common Criteria Certification (HCD-PP) (available at a later schedule) |
| Device Management and Auditing | Administrator Password, Digital Certificate And Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting |
Environmental
| Operating Environment | Temperature: 10 to 30ºC Humidity: 20 to 80% RH (Relative Humidity) |
| Power Source | 220-240V, 50/60Hz, 6A |
| Power Consumption | Maximum: iR-ADV DX 6855i: Approx. 1,800 W Standby: Approx. 50.7 W*14 Sleep mode: Approx. 0.8 W*15 |
Consumables

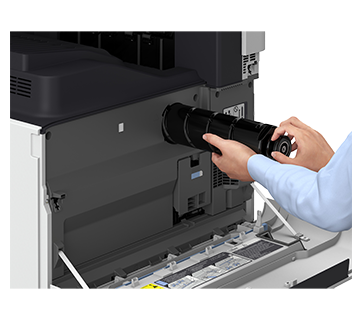

| Toner Cartridge/s | NPG-85 Toner BK |
Software and Printer Management
| Tracking and Reporting | Universal Login Manager (ULM) uniFLOW Online Express |
| Remote Management Tools | iW Management Console eMaintenance Content Delivery System |
| Scanning Software | Color Network ScanGear 2 |
| Optimisation Tools | Canon Driver Configuration Tool |
| Platform | MEAP (Multifunctional Embedded Application Platform) |
| Document Publishing | iW DESKTOP |
Paper Supply Options
| Cassette Feeding Unit-AQ1 | Paper Capacity: 2 x 550 sheets (80 g/m2 (gsm)) Paper Type: Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Pre-punched, Letterhead Paper Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 98.0 x 148.0 mm to 304.8 x 457.2 mm Paper Weight: 52 to 256 g/m2 (gsm) Dimensions (W x D x H): 620 x 660 x 251 mm (attached to the main unit) Weight: Approx. 22 kg |
| High Capacity Cassette Feeding Unit-C1 | Paper Capacity: 2,450 sheets (80 g/m2 (gsm)) Paper Type: Thin, Plain, Recycled, Color, Heavy, Bond, Pre-punched, Letterhead Paper Size: A4 Paper Weight: 52 to 256 g/m2 (gsm) Dimensions (W x D x H): 620 x 660 x 251 mm (attached to the main unit) Weight: Approx. 29 kg |
| Paper Deck Unit-F1 | Paper Capacity: 2,700 sheets (80 g/m2 (gsm)) Paper Type: Thin, Plain, Color, Recycled, Heavy, Pre-punched Paper Size: A4, B5 Paper Weight: 52 to 256 g/m2 (gsm) Dimensions (W x D x H): 344 x 630 x 440 mm (attached to the main unit) Weight: Approx. 31 kg |
Hardware Accessories
| Card Readers | Copy Card Reader Attachment-B7 Copy Card Reader-F1 IC Card Reader Box for Numeric Keypad-A1 |
| Others | Tab Feeding Attachment-F1 Buffer Pass Unit-P2 Utility Tray-B1 Numeric Keypad-A2 |
Security
| Data Security | Memory Mirroring Kit-A1 1TB SSD-A1 250GB SSD-A1 (usage with Memory Mirroring Kit-A1) |
System and Controller Options
| Print Accessories | PCL International Font Set-A1 PCL Asian Font Set-A1 PS Printer Kit-BC1 |
| Barcode Printing | Barcode Printing Kit-D1 |
| System Accessories | Copy Control Interface Kit-A1 Serial Interface Kit-K3 Connection Kit-A3 for Bluetooth LE |
| Fax Accessories | Super G3 FAX Board-AX1 Super G3 2nd Line Fax Board-AX1 Super G3 3rd/4th Line Fax Board-AX1 Remote Fax Kit-A1 IP FAX Expansion Kit-B1 |
Other Options
| Accessibility Accessories | ADF Access Handle-A1 Voice Guidance Kit-G1 Voice Operation Kit-D1 |
| Consumables | Staple-P1 Staple Cartridge-Y1 |
