Main Unit
| Machine Type | A3 Colour Laser Multifunctional |
| Core Function | Print, Copy, Scan, Send, Store and Optional Fax |

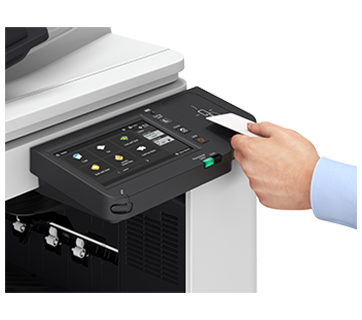

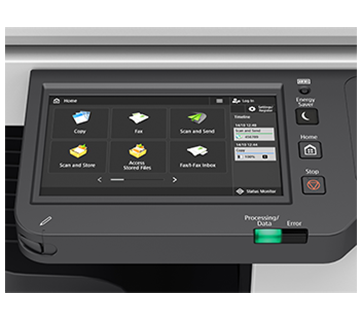

| Control Panel | 7 inch TFT LCD WVGA colour Touch panel |
| Memory | Standard: 2.0 GB RAM |
| Storage | eMMC: 30GB*1 |
| Interface Connection | NETWORK Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)OTHERS Standard: USB 2.0 (Host) x2, USB 2.0 (Device) x1 |
| Paper Supply Capacity (A4, 80 gsm) | Standard: 1,200 sheets Maximum: 2300 sheets (with Cassette Feeding Unit-AW1) |
| Paper Output Capacity (A4, 80 gsm) | Standard: 250 sheets Maximum: 650 sheets (with Inner Finisher-L1 and Copy Tray-T1) |
| Finishing Capabilities*2 | Collate, Group, Offset, Staple, Hole Punch, Eco Staple, Staple On Demand |
| Supported Media Types | Multi-purpose Tray: Thin, Plain, Heavy*3, Recycled, Coated, Colour, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, EnvelopeUpper Cassette: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope*4Lower Cassette: Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope*5 |
| Supported Media Sizes | Multi-purpose tray: Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 98.4 x 139.7 mm to 320.0 x 457.2 mm Envelopes: COM10 No.10, Monarch, ISO-C5, DL Envelope custom size: 98.0 x 98.0 mm to 320.0 x 457.2 mmUpper Cassette: Standard size: A4, A5, A5R, A6R, B5 Custom Size: 105.0 x 148.0 mm to 297.0 x 215.9 mm Envelope*4: ISO-C5Lower Cassette: Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm Envelopes*5: COM10 No.10, Monarch, DL |
| Supported Media Weights | Multi-purpose tray: 52 to 300 gsm Upper/Lower Cassette: 52 to 256 gsm Duplex: 52 to 220 gsm |
| Warm-up Time (Quick start mode: ON) | 4 seconds or Less*6 From Sleep Mode: 10 seconds or less10 seconds or Less*7 |
| Dimensions (W x D x H) | 565 x 687 x 891 mm |
| Installation Space (W x D) | 1168 x 1116 mm |
| Weight | Approx. 76.9 kg including toner (with DADF-BA1) |
| Print Speed (BW/CL) | 1-sided: Up to 26/26 ppm (A4, A5, A5R, A6R), Up to 20/20 ppm (A4R), Up to 15/15 ppm (A3)2-sided: Up to 13/13 ppm (A4, A5R), Up to 10/10 ppm (A4R), Up to 7/7 ppm (A3) |
| Print Resolution (dpi) | 600 × 600 1200 x 1200 (half-speed) |
| Page Description Languages | Standard: UFR II, PCL6 Optional: Adobe® PostScript® 3™ |
| Direct Print | Supported file types: RUI: PDF, EPS, TIFF/JPEG, XPS USB Memory: PDF, TIFF/JPEG, XPS Network Place: PDF, TIFF/JPEG, XPS |
| Printing from Mobile and Cloud Application | AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print |
| Fonts | PS fonts: 136 Roman PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*8 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*9 |
| Print Features | Secure Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/ Orientations, Toner Reduction, Poster Printing, Forced hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer |
| Operating System | UFRII: Windows® 8.1 / 10 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019, MAC OS X (10.11 or later) PCL: Windows® 8.1 / 10 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019 PS: Windows® 8.1 / 10 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019, MAC OS X (10.11 or later) PPD: Windows® 8.1/10, MAC OS X (10.11 or later) |
Copy
| Copy Speed (BW/CL) | 1-sided: Up to 26/26 ppm (A4, A5, A5R, A6R), Up to 20/20 ppm (A4R), Up to 15/15 ppm (A3)2-sided: Up to 13/13 ppm (A4, A5R), Up to 10/10 ppm (A4R), Up to 7/7 ppm (A3) |
| First-Copy-Out Time (A4, BW) | Approx. 7.0 / 8.7 seconds or less |
| Copy Resolution (dpi) | 600 x 600 |
| Multiple Copies | Up to 9,999 copies |
| Copy Density | Automatic or Manual (9 Levels) |
| Magnification | 25% – 400% (1% Increments) Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100%, 115%, 122%, 141%, 200%, 400% |
Scan
| Type | Optional: DADF-BA1 [2-sided to 2-sided] or Platen Cover-Y3 DADF: Duplexing Automatic Document Feeder |
| Document Feeder Paper Capacity (80 gsm) | Up to 100 sheets |
| Acceptable Originals and Weights | Platen: Sheet, Book and 3-Dimensional objects Document Feeder media weight: 1-sided scanning: 30 to 128 gsm (BW), 64 to 128 gsm (CL) 2-sided scanning: 50 to 128 gsm (BW), 64 to 128 gsm (CL) |
| Supported Media Sizes | Platen: max. scanning size: 297.0 x 431.8 mm Document Feeder media size: A3, A4, A4R, A5, A5R, B4, B5, B5R, B6 Custom size: 128.0 x 139.7 mm to 297.0 x 431.8 mm |
| Scan Speed (ipm: BW/CL, A4) | DADF: 1-sided Scanning: 70/70 (300 dpi, send), 51/42 (600 dpi, copy) 2-sided Scanning: 35/35 (300 dpi, send), 25.5/25.5 (600 dpi, copy) |
| Scan Resolution (dpi) | Scan for Copy: up to 600 x 600 Scan for Send: (Push, BW) up to 600 x 600, (Pull, BW) up to 600 x 600 (Push,CL) up to 300 x 300, (Pull, CL) up to 300 x 300 Scan for Fax: up to 600 x 600 |
| Pull Scan Specifications | Colour Network ScanGear2. For both TWAIN and WIA. Supported OS: Windows® 8.1 / 10 / Server2012 / Server2012 R2 / Server 2016 / Server 2019 |
| Scan Method | PushScan, PullScan, Scan to Network, Scan to USB Memory Key, Scan to Mobile device, Scan to cloud-based services (uniFLOW Online/Online Express) |
Send
| Destination | Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV Optional: Super G3 FAX |
| Address Book | LDAP (2,000) / Local (1,600) / One-touch (200) |
| Send Resolution (dpi) | Push: 100 x 100, 150 x 150, 200 x 100 (Normal), 200 x 200 (Fine), 200 x 400*10 (SuperFine), 300 x 300, 400 x400*10 (UltraFine), 600 x 600*10 Pull: 75 x 75, 100 x 100, 150 x 150, 200 x 200, 300 x 300, 400 ｘ 400*10, 600 x 600*10 |
| Communication Protocol | File: FTP (TCP/IP), SMB3.0 (TCP/IP), WebDAV Email/iFax: SMTP (send), POP3 (receive) |
| File Format | Standard: TIFF (MMR), JPEG*11, PDF (Compact, Searchable, PDF/A-1b, Encrypted), XPS (Compact, Searchable), PDF/XPS (Device Signature), Office Open XML (PowerPoint, Word) Optional: PDF (Trace & Smooth), PDF/XPS (User Signature) |
Fax
| Maximum Number of Connection Lines | 1 |
| Modem Speed | Super G3: 33.6 kbps G3: 14.4 kbps |
| Compression Method | MH, MR, MMR, JBIG |
| Resolution (dpi) | 400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal) |
| Sending / Receiving Size | Sending: A3, A4, A4R, A5*12, A5R*12, B4, B5*13, B5R*12 Receiving: A3, A4, A4R, A5R, B4, B5, B5R |
| Fax Memory | Up to 30,000 pages |
| Speed Dials | Max. 200 |
| Group Dials / Destinations | Max. 199 dials |
| Sequential Broadcast | Max. 256 addresses |
| Memory Backup | Yes |
Store
| Memory Media | Standard: USB Memory |
Security
| Authentication and Access Control | User Authentication(Picture Login, Picture and PIN Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control) |
| Document Security | Print Security (Secure Print, Encrypted SecurePrint, Forced Hold Printing, uniFLOW Secure Print*14), Recieve Data Security(Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS*15), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support) |
| Network Security | TLS 1.3, IPSec, IEEE802.1X authentication, SNMPv3, Firewall, Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception |
| Device Security | Standard Storage Initialize, Job Log Conceal Function, Protecting MFP Software Integrity, Verify System at Startup, Runtime Intrusion Detection |
| Device Management and Auditing | Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Security Policy Setting |
Environmental
| Operating Environment | Temperature: 10 to 30 ºC Humidity: 20 to 80 % RH (Relative Humidity) |
| Power Source | 220-240 V 50/60 Hz 4 A |
| Power Consumption | Maximum: Approx. 1,500 W Standby: Approx. 44.0 W*16 Sleep mode: Approx. 2.0 W*17, Approx. 1.0 W*18 |
Consumables
| Toner Yield (Estimated Yield @5% coverage) | NPG-67 TONER BK: 36,000 pages NPG-67 TONER C/M/Y:19,000 pages NPG-67L TONER C/M/Y: 2,500 pages |
Software and Printer Management
| Tracking and Reporting | uniFLOW Online Express |
| Remote Management Tools | iW Management Console eMaintenance Content Delivery System |
| Scanning Software | ScanGear |
| Optimisation Tools | Canon Driver Configuration Tool |
| Document Publishing | iW DESKTOP |
Paper Supply Options
| Cassette Feeding Unit-AW1 | Paper Capacity: 550 sheets x 2 (1,100 sheets) (80 gsm) Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead Paper Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm Paper Weight: 52 to 256 gsm Power Source: From the Main Unit Dimensions (W x D x H): 565 x 635 x 248 mm Weight: Approx. 16.0 kg |
Output Options
| Inner 2way Tray-M1 | Tray Capacity (with 80 gsm paper) Upper tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: 100 sheets Lower tray (standard tray): A4, A5, A5R, A6R, B5, B5R: up to 250 sheets SRA3, A3, A4R, B4: up to 100 sheetsPaper Weight: 52 to 300 gsm Dimensions (W x D x H): 428 x 405 x 88 mm Weight: Approx. 0.7 kg |
| Copy Tray-T1 | Capacity (with 80 gsm paper): A4, A5R, B5, B5R: 100 sheets A3, A4R, B4: 75 sheetsDimensions (W x D x H): 442 × 373 × 176 mm (attached to the main unit, when the extension tray is extended) Weight: Approx. 0.5 kg |
| Inner Finisher-L1 | Tray Capacity (with 80 gsm paper): Upper Tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: approx. 45 sheets Lower Tray: A4, A5, A5R, B5: approx. 500 sheets SRA3, A3, A4R, B4, B5R: 250 sheets A6R: 30 sheets Envelope: 10 sheetsPaper Weight: 52 to 300 gsm Staple Position: Corner, Double Staple Capacity: A4, B5: 50 sheets (52 to 90 gsm) A4R: 40 sheets (52 to 90 gsm) A3, B4: 30 sheets (52 to 90 gsm)Eco Staple: A3, A4, B4, B5: 10 sheets (52 to 64 gsm) 8 sheets (65 to 81.4 gsm) 6 sheets (82 to 105 gsm) Staple On Demand: approx. 40 sheets (80 gsm) Dimensions (W x D x H): 727× 525 × 225 mm (attached to the main unit, when the extension tray is extended) Weight: Approx. 9.1 kg |
| Inner 2/3 Hole Puncher-D1 | (Requires Inner Finisher-L1) Two or Three Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Two holes A3, A4, A4R, A5, B4, B5, B5R, Three holes A3, A4, B4, B5 |
| Inner 2/4 Hole Puncher-D1 | (Requires Inner Finisher-L1) Two or Four Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Two holes A3, A4, A4R, A5, B4, B5, B5R, Four holes A3, A4 |
Hardware Accessories
| Card Readers | Copy Card Reader Attachment-H3 IC Card Reader Attachment-B3 IC Card Reader Attachment-B4 Copy Card Reader-F1 |
| Others | Option Attachment kit for Reader-A2 DADF-BA1 Platen Cover-Y3 Utility Tray-B1 |
System and Controller Options
| Print Accessories | PCL International Font Set-A1 PCL Asian Font Set-A1 PS Printer Kit-CS1 |
| Send Options | Universal Send Trace & Smooth PDF Kit-A1 Universal Send Digital User Signature Kit-C1 |
| Barcode Printing | Barcode Printing Kit-D1 |
| System Accessories | Copy Control Interface Kit-D1 |
| Fax Accessories | Super G3 FAX Board-BJ1 Remote Fax Kit-A1 |
Other Options
| Accessibility Accessories | ADF Access Handle-A1 Media Adjustment kit-A1 |
| Staple Cartridges | Staple-P1 |
